| HPN,HHFF,NNFF,CSP
|
|
|
应用：
适用于家用电器、钟表、风扇、收音机等
连接电源线 |
认证单位与标志：  |
| 国家 |
认证单位 |
档案号 |
标志 |
| U.S.A.(美国) |
UL |
E156549,E162697,E159007 |
 |
| Canada(加拿大) |
CSA |
LL101156 |
 |
| Japan(日本) |
JET-PSE |
JET2910-11007-1001,JET2910-11011-1001,JET2910-11011-1002,JET2910-11011-1003,JET2910-11019-1001,JET2910-11009-1002,JET2910-11012-1001,JET2910-11012-1002,JET2910-11012-1003. |
 |
| Brazil(巴西) |
UCIEE |
MC,FCV10515~MC,FVC-10519 |
 |
说明 |
操作温度:-35℃~+105℃(HPN).
操作温度:+75℃(NNFF).
操作温度:+90℃(HHFF).
操作温度:+105℃(CSP).
额定电压:300V
|
通过VW-1垂直及FT2水平型耐燃测试.

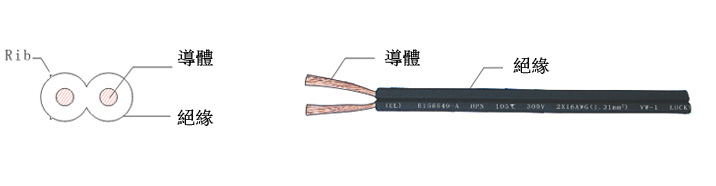

裸软铜或镀锡铜绞线.
乙丙橡胶绝缘(HPN)
氯化聚乙烯橡胶外被(NNFF. HHFF. CSP. HPN) |
| General data for cable type HPN (2~3×18~12AWG) |
| 型号 |
导体 |
绿色地线 |
绝缘体 |
Max. resistance of
condutor at 20 ℃/Ω/km. |
| 规格 |
(No./mm) 结构 |
(mm) 平均厚度 |
(mm) 平均厚度 |
完成外径 |
裸铜 |
镀锡铜 |
| |
(mm2) |
AWG |
| HPN |
2×0.824 |
2×18 |
41/0.160 |
- |
1.14 |
3.50±0.05×6.90±0.20 |
22.4 |
23.6 |
| 2×1.31 |
2×16 |
65/0.160 |
3.90±0.05×7.60±0.20 |
14.1 |
14.9 |
| 3×0.824 |
3×18 |
65/0.160 |
0.38
|
3.80±0.05×9.10±0.20 |
22.4 |
23.6 |
| 3×1.31 |
3×16 |
41/0.160 |
3.90±0.05×10.00±0.30 |
14.1 |
14.9 |
| General data for cable type NNFF,HHFF (2×0.75~2.0mm2) |
| NNFF |
2×0.75 |
- |
30/0.18 |
- |
1 |
3.20×6.40±0.20 |
22.4 |
25.8 |
| 2×1.25 |
- |
50/0.18 |
3.60×7.20±0.20 |
14.7 |
15.5 |
| 2×2.0 |
- |
37/0.26 |
3.90×7.80±0.20 |
9.5 |
9.91 |
| HHFF |
2×0.75 |
- |
30/0.18 |
- |
1 |
3.20×6.40±0.20 |
22.4 |
25.8 |
| 2×1.25 |
- |
50/0.18 |
3.60×7.20±0.20 |
14.7 |
15.5 |
| 2×2.0 |
- |
37/0.26 |
3.90×7.80±0.20 |
9.5 |
9.91 |
| General data for cable type CSP (2×0.75~1.5mm2) |
| CSP |
2×0.75 |
- |
30/0.18 |
- |
1.1 |
3.50×6.70±0.20 |
26 |
26.7 |
| 2×1.0 |
- |
32/0.197 |
3.60×6.90±0.20 |
19.5 |
20 |
| 2×1.50 |
- |
30/0.250 |
1.5 |
4.80×8.50±0.30 |
13.3 |
13.7 |
|
|
|
| |
|
|
|
